Self-locking locks Accessories

Cables

Simple transmission of electrical energy from the frame to the door. The door contacts are recessed both in the frame and in the door. When the door is closed, the spring contacts connect and form an electrical circuit with the lock or magnet. The contact surfaces of the door contacts are large enough so that there is always a reliable transmission of electrical energy when the door is moved relative to the frame, or when assembly is performed incorrectly. Window security. Opening the window breaks the watch loop. Danger status.

• Type of connection: three-point
• Contact area: 10 x 10 mm
• Contact material: steel, brass, nickel
• Voltage/current: 12 V / 30 W max 2 A or 24 V / 30 W max 1.3 A
• Live load: unlimited
• Dimensions: 16 x 86 x 31 mm
• Warranty period: 3 years

Order code: PRK 1

Stainless steel plate for the door contact.

• Material: stainless steel
• Dimensions: 18 x 110 x 1.5 mm

Order code: PRK LI

Cable glands small:

• Dimensions: length 300 mm x tray width 20 mm

Order code: PPN 300/20

Kabelové průchodky velké:

• Dimensions: length 500 mm x tray width 20 mm

Order code: PPN 500/20

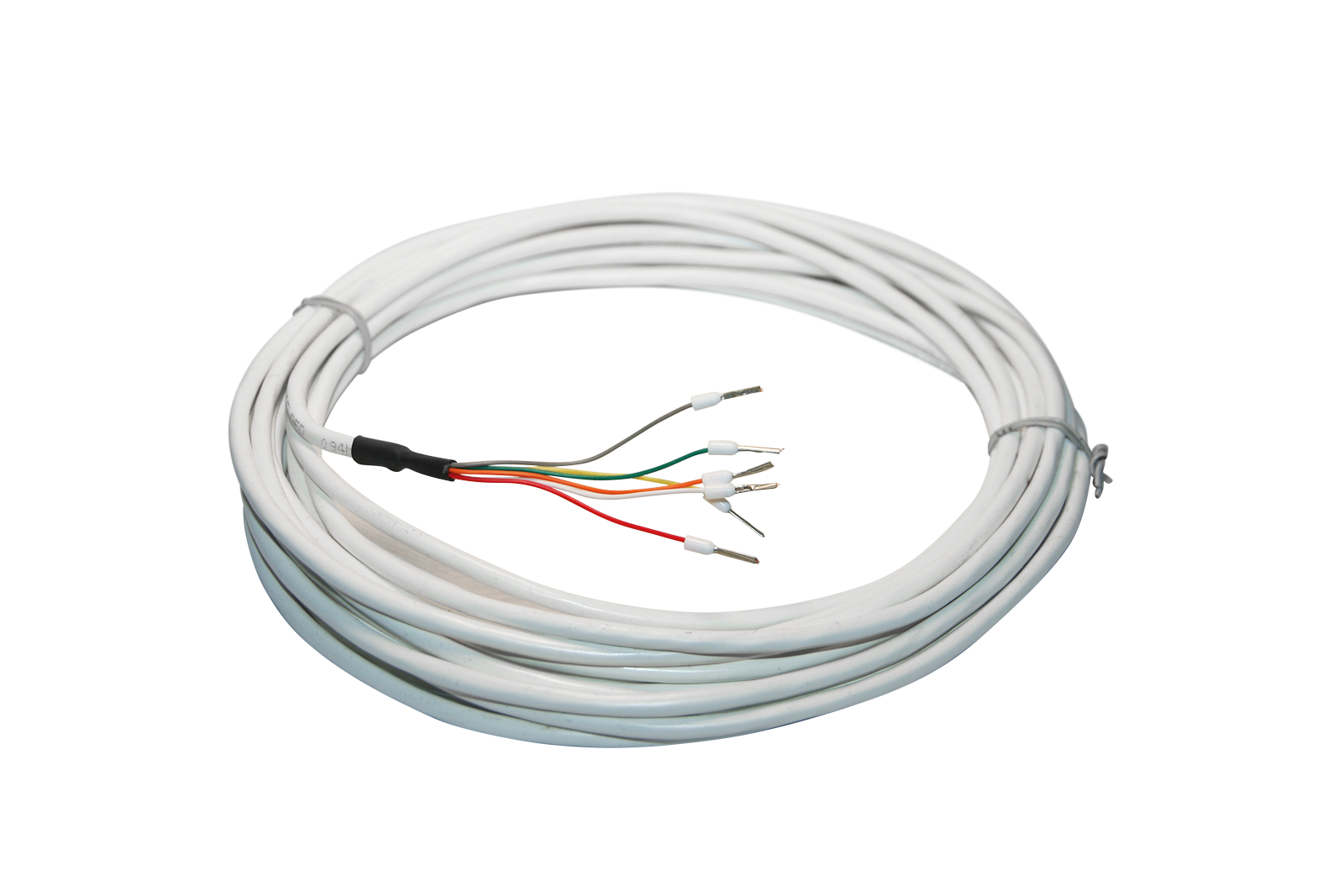

Power cable short:

• Cable length: 3 m
• Wire cross-section: 8 x 0.22 mm
• Finished on one side with a socket

Order code: KAB 3/8

Power cable Long:

• Cable length: 6 m
• Wire cross-section: 8 x 0.22 mm
• Finished on one side with a socket

Order code: KAB 6/8

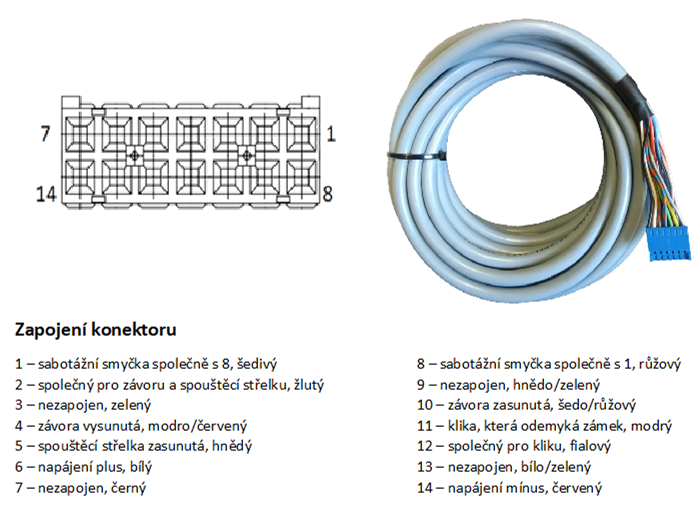

Power cable with connector 14 wire:

• for locks with microswitches
• Cable length: 6 m
• Wire cross-section: 14 x 0.22 mm
• Ended on one side with a connector

Order code: KAB 6/AA

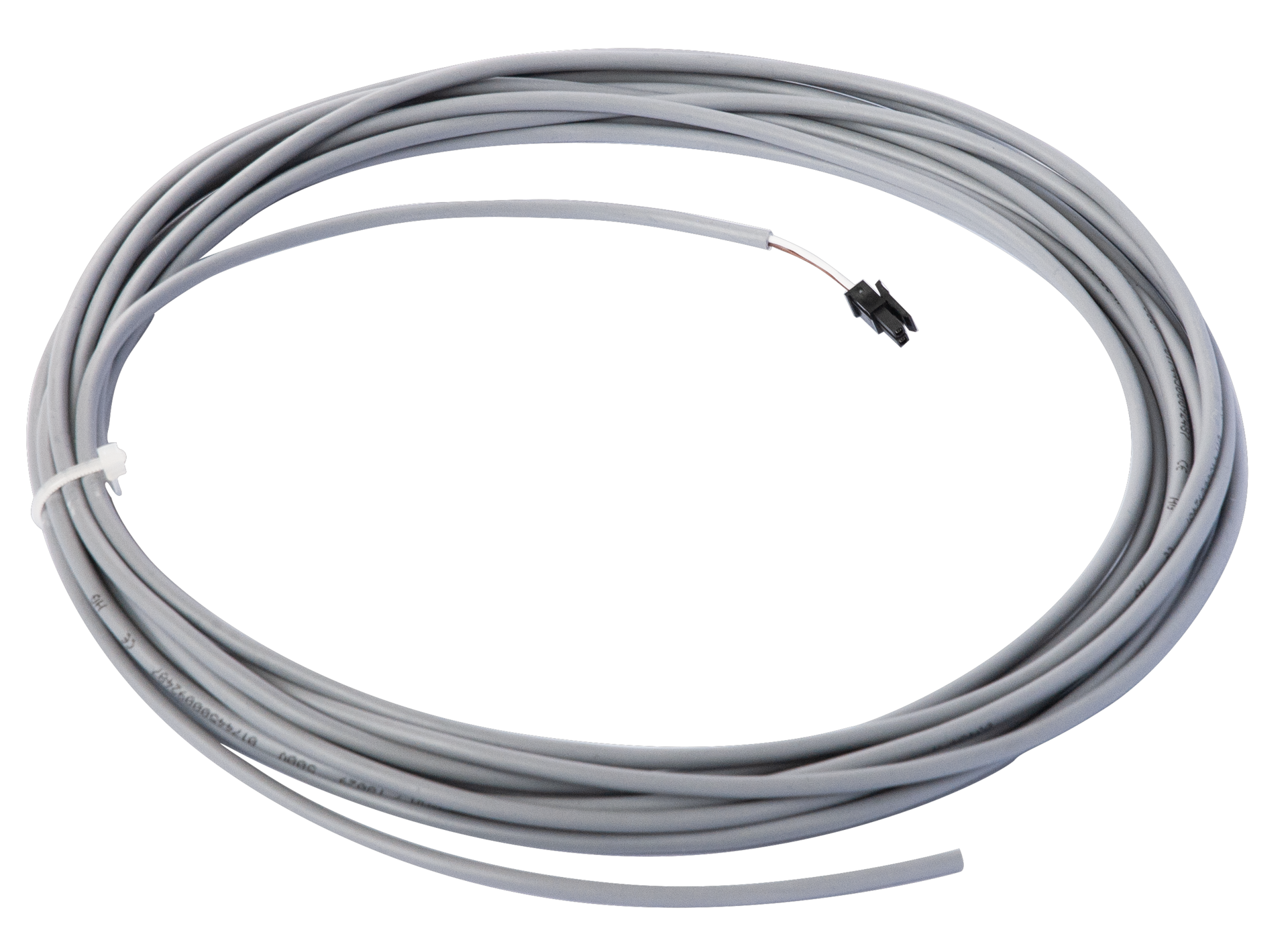

Power cable with connector 2 wire:

• for locks without microswitches
• Cable length: 6 m
• Wire cross-section: 2 x 0.22 mm
• Ended on one side with a connector

Order code: KAB 6/2k
